Whether you are a car enthusiast looking to spruce up your workspace or just someone who loves unique, retro decor, a traffic light is a guaranteed conversation starter. There is something undeniably cool about the glow of red, yellow, and green illuminating a garage. It adds character, nostalgia, and a touch of the open road to your personal space.
However, owning a traffic light is one thing; getting it mounted safely and wiring it correctly is another challenge entirely. These signals are often heavier than they look and require specific electrical know-how to function safely in a residential setting.
This guide on how to hang traffic light in garage will walk you through the process of hanging and wiring a traffic light in your garage safely and effectively.
What Will You Need?
Before you begin, gather the necessary materials and tools. Traffic lights are heavy industrial equipment, so standard picture hooks won’t cut it.
Materials:
- A traffic light (polycarbonate or aluminum)
- Heavy-duty ceiling hooks or wall brackets (rated for at least 50 lbs)
- Stud finder
- Chains or steel cables (if ceiling mounting)
- Lag bolts (1/4 inch or larger)
- Traffic light controller board (sequencer) or manual switches
- 3-prong power cord (grounded)
- Wire nuts and electrical tape
- LED or incandescent traffic signal bulbs
Tools:
- Drill with appropriate bits
- Socket wrench set
- Wire strippers/cutters
- Screwdrivers (flathead and Phillips)
- Ladder
- Voltage tester
- Measuring tape
10 Easy Steps to How to Hang Traffic Light in Garage
Step 1: Inspect and Clean the Unit
Before you even think about drilling holes, you need to get intimate with your new piece of decor. Authentic traffic lights, especially those retired from service, have lived a hard life outdoors. They are often covered in years of road grime, soot, and insect nests. Open up the housing by releasing the latches or thumbscrews on the front of the visors.

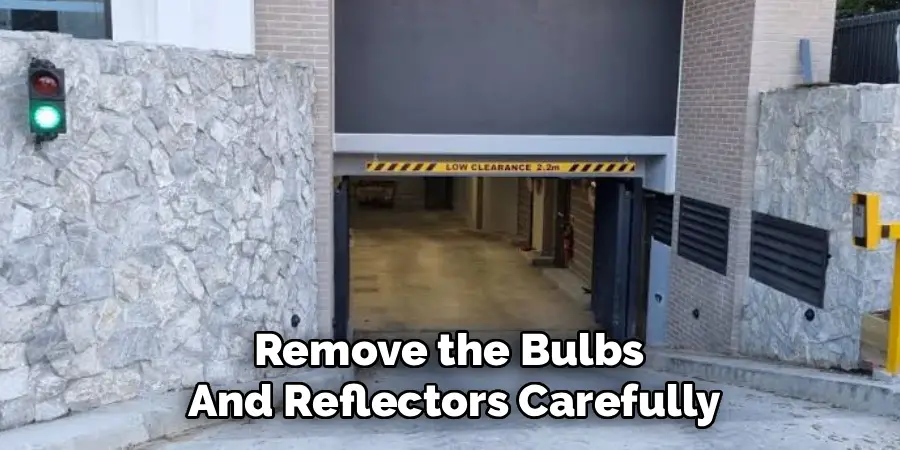

Remove the bulbs and reflectors carefully. Wash the lenses and the exterior housing with warm, soapy water. Avoid harsh chemicals on polycarbonate lenses as they can fog up the plastic. While you are cleaning, inspect the wiring insulation. If the internal wires are brittle, cracked, or chewed by rodents, you will need to replace them completely before proceeding.
Step 2: Determine Your Mounting Location
Location is critical for both safety and aesthetics. Traffic lights can weigh anywhere from 20 to 50 pounds, depending on whether they are made of aluminum or polycarbonate (plastic). You cannot simply screw this into drywall. You must locate a structural support. Use a stud finder to locate the ceiling joists or wall studs where you want the light to hang. If you are ceiling mounting, ensure the light will hang high enough that you won’t hit your head on it, and that it won’t interfere with your garage door opening mechanism. Measure the clearance carefully, especially if you have a lifted truck or SUV.
Step 3: Choose Your Suspension Method

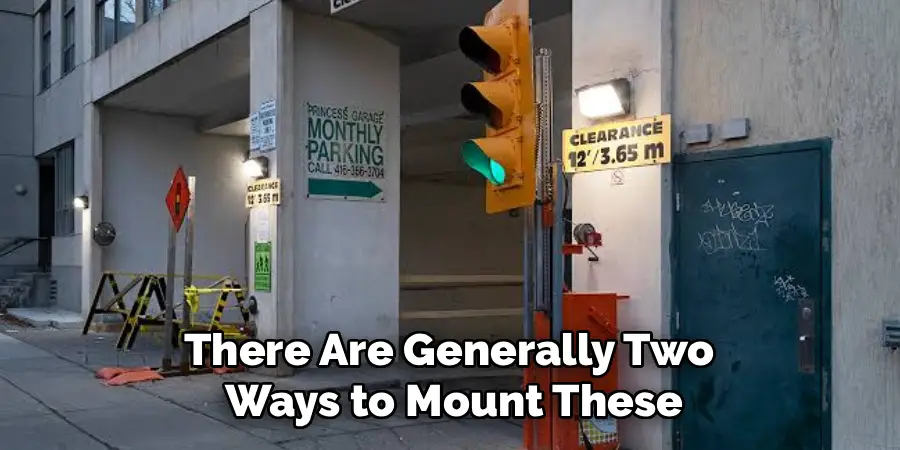

There are generally two ways to mount these: rigidly against a wall or suspended from the ceiling. For a garage, suspension is often the most popular choice as it mimics how lights hang in intersections. If suspending, you will need a heavy-duty chain or steel cable.
Measure the distance from the ceiling to the desired height of the light. Cut two equal lengths of chain. If wall mounting, you will need specialty brackets, often called “span wire clamps” or simple L-brackets reinforced for heavy loads. For this guide, we will focus on the suspension method, as it is the most common DIY approach.
Step 4: Install the Hardware into the Joists
Once you have marked your center points on the ceiling joists (from Step 2), drill pilot holes for your heavy-duty ceiling hooks or eye bolts. Pilot holes are essential to prevent the wood from splitting when you drive in the large lag bolts. Screw the hooks into the joists until they are flush and secure. Give them a strong tug—they should be able to support your body weight, as the light is heavy and you want a safety margin. If your joists aren’t in the exact right spot, you may need to span a 2×4 piece of lumber across two joists and mount your hooks to that lumber.
Step 5: Prepare the Traffic Light for Hanging
Most traffic lights have holes in the top and bottom plates. You will need to attach hardware to the top of the signal to accept the chain. Install heavy-duty eye bolts or S-hooks into the top mounting holes of the traffic light housing. Ensure these are bolted through with washers and lock nuts on the inside of the housing so they cannot back out over time. If the light is aluminum, ensure no corrosion around these mounting points could weaken the structure.
Step 6: Hang the Light (A Two-Person Job)
Do not attempt to lift and hang the light while balancing on a ladder by yourself. Have a friend lift the traffic light while you stand on the ladder to connect the chains to the ceiling hooks. Connect the chains to the light first, then lift the assembly and hook the chains onto the ceiling mounts. Use a level to ensure the light is hanging straight. If it is tilting forward or backward, you may need to adjust the mounting point of the chain on the light housing to find the center of gravity.
Step 7: Wiring the Power Cord

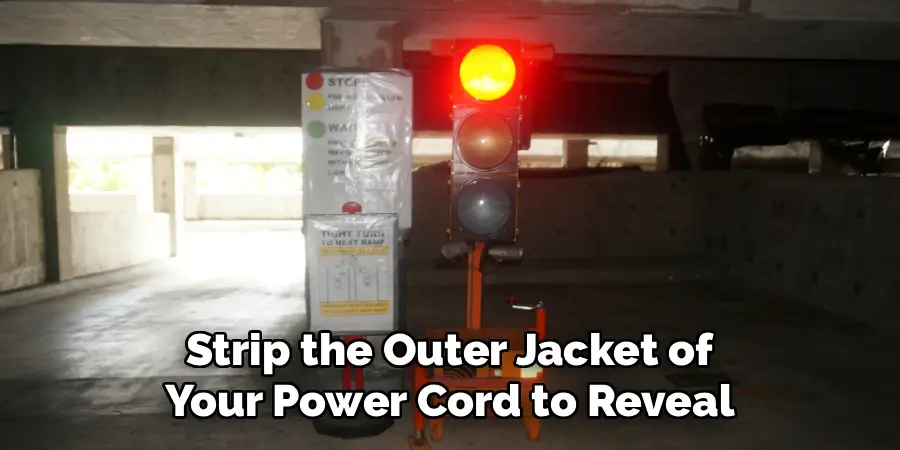

Now for the electrical work. Standard traffic lights run on 120V AC, just like your wall outlets, but they aren’t wired with a plug. You need to wire a 3-prong power cord to the light. Strip the outer jacket of your power cord to reveal the black (hot), white (neutral), and green (ground) wires. Inside the traffic light, there is usually a terminal block.
Connect the green ground wire to the metal housing of the light (or the designated ground screw). This is crucial for safety. Connect the white neutral wire from your cord to the common neutral bus bar in the light (usually where all the white wires from the individual sockets meet).
Step 8: Installing the Sequencer or Controller
If you just connect the black wire to the red light’s wire, the red light will stay on forever. To make the lights cycle (Green -> Yellow -> Red), you need a controller board. These are small circuit boards available online specifically for this hobby. Mount the board inside the housing (using double-sided tape or standoffs). Connect the “Line In” (Hot) from your power cord to the board’s input. Then, connect the output wires from the board to the individual colored wires for each section (Red, Yellow, Green). Double-check the wiring diagram that comes with your specific controller board.
Step 9: Install Bulbs and Test
Install your light bulbs. Standard 60-watt household bulbs will work, but “traffic signal” bulbs are ruggedized to withstand vibration and last longer. Alternatively, LED traffic signal bulbs run cooler and use less electricity. Once bulbs are in, plug the unit into a wall outlet. Do not touch any bare wires while it is plugged in. Watch the sequence. If the lights cycle correctly, you are in business. If a light doesn’t turn on, check your bulb and your wire nut connections. If the sequence is wrong (e.g., Red to Green without Yellow), adjust the wiring on the controller board outputs.
Step 10: Final Cable Management
You don’t want an ugly power cord dangling loosely from your awesome new light. Zip-tie the power cord to one of the suspension chains, running it up to the ceiling. From there, use cable staples to run the cord neatly along the ceiling and down the wall to the nearest outlet. Ensure the cord is not pulled tight; leave a little slack loop at the top. Close up the traffic light doors, latch them shut, and enjoy your new garage masterpiece.
5 Things You Should Avoid
- Ignoring Weight Limits: Never hang a traffic light from drywall anchors or weak drop-ceiling grids. These units are significantly heavier than standard light fixtures and can cause severe damage or injury if they fall.
- Skipping the Ground Wire: Metal traffic lights can become electrified if a wire comes loose inside. Failing to connect the ground wire creates a serious shock hazard in your garage.
- Using High-Wattage Bulbs: Avoid using standard incandescent bulbs over 60 watts if the housing is polycarbonate (plastic). High heat in a closed environment can melt the lenses or the housing itself.
- Wiring Without a Controller: Don’t wire all three lights to come on at once unless you want to blind yourself and melt the unit. Without a sequencer, the light loses its “traffic” appeal and just becomes a bright lamp.
- Mounting Too Low: Avoid guessing the height. If you mount it too low, you risk hitting it with a ladder, a piece of lumber, or your vehicle’s roof rack. Always measure clearance with the garage door open and closed.
Conclusion
Installing a traffic light in your garage is a rewarding weekend project that results in a fantastic piece of decor. It combines basic carpentry skills with simple electrical wiring, making it an accessible task for most DIYers.
By following these safety guidelines and steps, you can ensure your light hangs securely and cycles beautifully for years to come.
Hopefully, this guide on how to hang traffic light in garage has inspired you to add a unique touch to your garage and make it stand out from the rest. Whether you choose to use a traditional traffic light or get creative with different colors, have fun with the process and enjoy the result!
