If you are like most homeowners, your garage eventually becomes the catch-all for everything that doesn’t fit inside the house. From holiday decorations to camping gear, the floor space disappears quickly. The solution seems obvious: look up. Your garage ceiling offers a vast amount of potential storage real estate, but there is a catch.
Before you start hoisting heavy boxes overhead, you need to ensure the structure can handle the load. Strengthening your garage ceiling—specifically the joists—is a crucial safety step that transforms wasted space into a functional storage area.
This guide on how to strengthen garage ceiling for storage will walk you through the process of reinforcing your ceiling joists, allowing you to safely store your belongings without worrying about a structural failure.
What Will You Need?
Before you begin, gather the necessary tools and materials. This is a structural project, so quality matters.
Tools:
- Stud finder
- Tape measure
- Circular saw, or miter saw
- Cordless drill and impact driver
- Level
- Ladder or scaffolding
- Safety gear (goggles, gloves, dust mask)
- Pencil or chalk line
Materials:
- Lumber (2x6s or 2x8s, depending on your existing joists and span)
- Structural wood screws or lag bolts
- Joist hangers
- Plywood or OSB for decking (optional, if creating a floor)
- Construction adhesive
10 Easy Steps on How to Strengthen Garage Ceiling for Storage
Reinforcing a garage ceiling is a manageable DIY project if you have basic carpentry skills, but it requires precision. The goal is to “sister” the existing joists—attaching new lumber alongside the old to increase load-bearing capacity—or to add additional framing.
Step 1: Inspect the Existing Structure
Before buying materials, you must understand what you are working with. Get on a ladder and examine the current ceiling joists. Are they 2x4s, 2x6s, or engineered trusses? Note the spacing between them (usually 16 or 24 inches on center) and the span (the distance from wall to wall). Look for signs of damage, such as rot, cracks, or termite issues. If you have pre-fabricated trusses (webbed triangles), stop. Trusses are engineered systems; you cannot simply drill into or modify them without consulting a structural engineer, as this can compromise the roof’s integrity. This guide assumes you have standard rafter ties or ceiling joists.

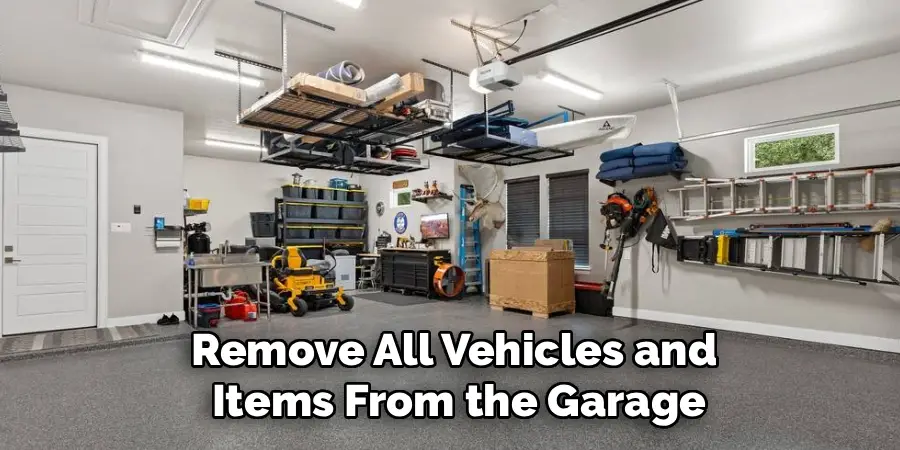

Step 2: Clear the Area and Determine the Load
Safety is paramount. Remove all vehicles and items from the garage to give yourself ample workspace and prevent damage from falling debris. Next, calculate a rough estimate of the weight you intend to store. Are you storing light seasonal decor or heavy automotive parts? This determines how much reinforcement is needed. For heavy loads, you might need to upgrade from 2x4s to 2x6s or even 2x8s for your sistering material. Generally, you want to build for a “live load” (the weight of the stored items) plus the “dead load” (the weight of the storage structure itself).
Step 3: Measure and Cut the Sister Joists
“Sistering” involves attaching a new board to the side of an existing joist. This effectively doubles the thickness and strength of the beam. Measure the full length of the span you need to reinforce. You want the new lumber to rest on the bearing walls at both ends if possible. If the span is too long for a single board, you may need to overlap them over a bearing wall or beam. Cut your new lumber (likely 2x6s or larger) to the exact length required. Ensure the new boards are straight and free of large knots that could weaken them.

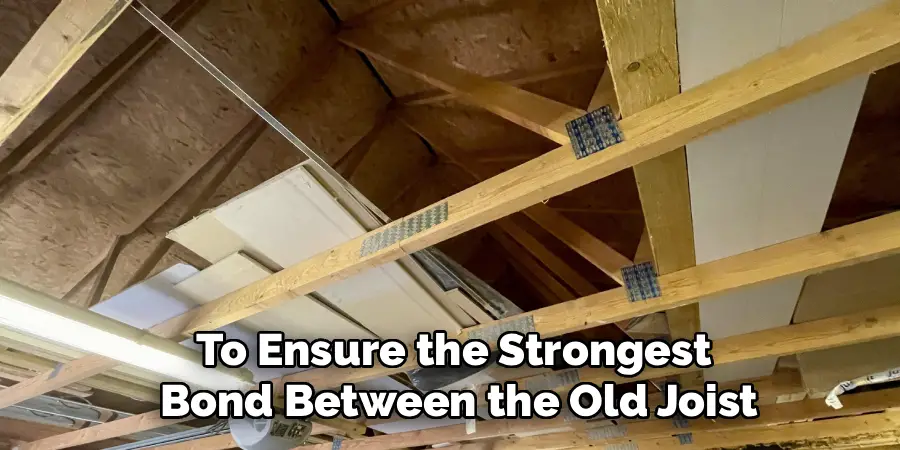

Step 4: Prepare the Contact Surfaces
To ensure the strongest bond between the old joist and the new sister joist, the surfaces must be flush. Remove any obstructions on the existing joists, such as wiring staples, nails, or insulation that might get in the way. If there is electrical wiring running through the joists, you will need to detach it temporarily or notch the new wood carefully (though notching reduces strength, so it is better to reroute if possible). Apply a zigzag bead of heavy-duty construction adhesive along the length of the existing joist. This glue acts as a secondary bonding agent and prevents squeaking.
Step 5: Lift and Clamp the New Joists
This step usually requires a helper. Lift the new lumber into place, pressing it firmly against the existing joist with the adhesive in between. Use C-clamps or quick-grip clamps to hold the two boards tightly together. Ensure the bottom edges are flush with each other so that if you decide to add drywall later, you have a flat surface. If the old joist is sagging, you may need to use a hydraulic jack and a temporary post to push it back to level before clamping the new straight board to it.
Step 6: Fasten the Joists Together
Once clamped, it is time to permanently secure the boards. Use structural wood screws or lag bolts. Do not use standard drywall screws or nails, as they lack the shear strength required for load-bearing applications. Drive a pair of screws every 16 inches in a zigzag pattern (one near the top, one near the bottom) along the entire length of the beam. This “laminates” the two boards into a single, stronger unit. Ensure the fasteners penetrate through the new board and well into the old one, but not so far that they poke out the other side.
Step 7: Install Joist Hangers

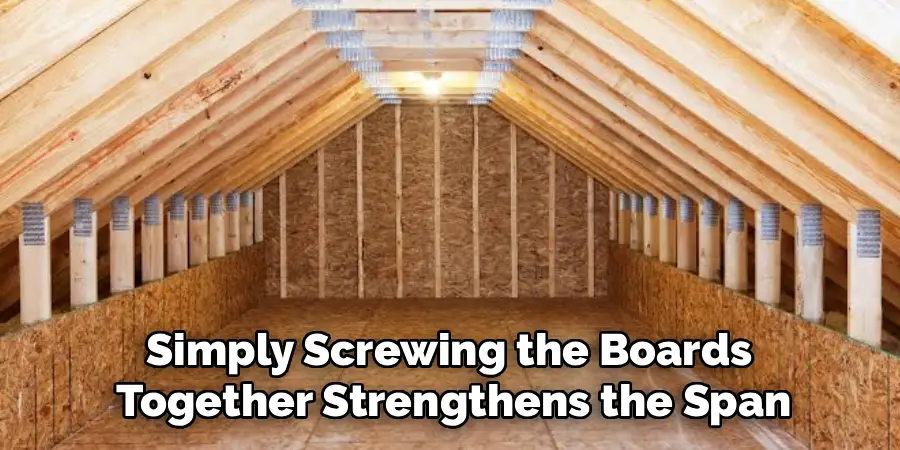

Simply screwing the boards together strengthens the span, but the weight ultimately rests on the ends of the joists. To ensure this connection is secure, install metal joist hangers where the joists meet the wall plates or the carrying beam. If the original joists didn’t have hangers, add them now. Secure the hangers with specified structural connector nails (tico nails) or structural screws. This transfers the vertical load from the joist directly to the walls, preventing the joist from shearing off under heavy weight.
Step 8: Add Blocking for Lateral Stability
Joists are strong vertically but can twist or buckle sideways under load. To prevent this, install “blocking” or bridging. These are short pieces of lumber cut to fit snugly between the joists, running perpendicular to them. Install a row of blocking down the center of the span, or every 8 feet if the span is long. You can stagger them slightly (one inch off from the next) to make it easier to drive nails into the ends. This locks the joists together, distributing the weight load across multiple beams rather than just one.
Step 9: Install the Storage Decking or Racks
With the skeleton reinforced, you can now add the “skin.” If you want an attic-style platform, install sheets of 3/4-inch plywood or OSB (Oriented Strand Board) on top of the joists. Screw the decking down securely. If you are installing hanging racks, you can now bolt them into your reinforced joists with confidence. Always follow the manufacturer’s instructions for the racks, ensuring the lag bolts go into the center of the wood, not the edges.
Step 10: Final Inspection and Weight Test
Before loading up your boxes, do a final walkthrough. Check that all screws are tight, hangers are fully nailed, and blocking is secure. Gently test the stability of the structure. If you installed a platform, crawl onto it carefully to check for excessive deflection (bouncing) or creaking. If everything feels solid, you can begin organizing. Start by placing heavier items near the walls (where support is strongest) and lighter items toward the center of the span.
By following these steps, you can ensure the safety and stability of your storage structure. It’s important to regularly check and maintain your structure to prevent any potential hazards.
5 Things You Should Avoid
- Ignoring the Weight Limit: Even reinforced ceilings have limits. Never treat your garage attic like a concrete warehouse floor. Avoid storing extremely heavy items like engines, large stacks of tile, or weights overhead.
- Cutting Into Trusses: As mentioned, never cut, notch, or drill large holes into engineered truss webs. You can alter the tension and compression forces, leading to a catastrophic roof collapse.
- Using Incorrect Fasteners: Drywall screws are brittle and can snap under shear force. Always use fasteners rated for structural use, such as structural screws or carriage bolts.
- Covering Electrical Junction Boxes: If you install decking, ensure you don’t bury electrical junction boxes. By code, all connections must remain accessible. You may need to lower the boxes or cut access holes.
- Overlooking Insulation: If your garage ceiling is insulated, compressing the fiberglass with plywood decking reduces its R-value (insulating power). Consider raising the deck height or using rigid foam insulation to maintain thermal efficiency.
Conclusion
How to strengthen garage ceiling for storage is one of the most practical home improvement projects you can undertake. It clears the clutter from your life and protects your belongings.
By taking the time to assess your structure and following these reinforcement steps properly, you ensure that your storage solution is not only spacious but safe.
Don’t let a cluttered garage limit your home’s potential. Gather your tools, buy your lumber, and start building a stronger, more organized space today.
